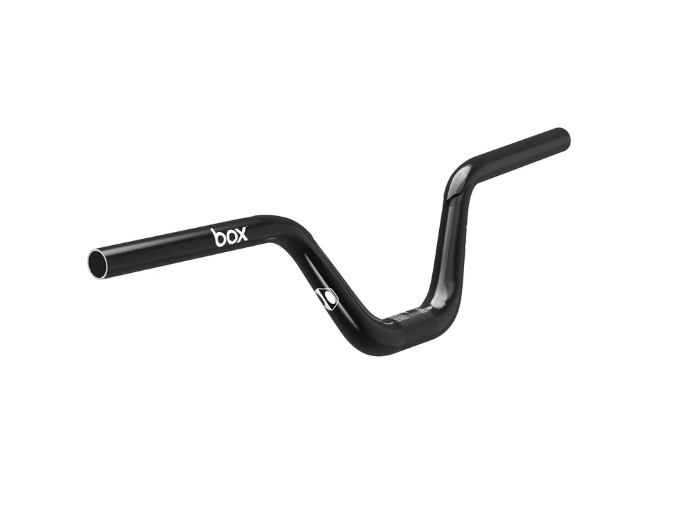

BOX HEX LAB UD Carbon BMX 28.6 Handlebar 4.5”

All Box handlebars are engineered and crafted using our Oversized Technology. Handlebars have a dual purpose as they contribute to both steering and pedaling stiffness. By strategically varying wall thicknesses and tube diameters we have moved material from 3 low stress areas to zones of high load. This has greatly minimized twist and contributed to responsiveness. Concurrently we have increased pedaling stiffness by providing a backstop to the “lifting” phenomenon. There is no point pushing hard on your pedals if you can’t pull up on your handlebars and deliver that power. Power can easily be lost to handlebar deflection and the consequences can lead to poor power delivery and steering control. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences: This particular model handlebar pushes our Oversized Technology to the extreme as it makes use of carbon fiber to run through those tapered zones. Say good-bye to defection. These bars are engineered for the smaller-sized racers.

Weight Limit: 45 kg (99 lbs) or less with limitations as per Category 1 of EN 16054:2012 Standard

Clamp (Ø) 4.5 Inch 28.6mm 6 Inch 28.6mm
Material UD Carbon Fiber
Sweep 6° back, 2° up 6° back, 3° up
Weight 189 grams / 6.6 ounces, 325 grams / 11.4 ounces
Width 23.6 inches, 26 inches

Weight Limit: 45 kg (99 lbs) or less with limitations as per Category 1 of EN 16054:2012 Standard
